Vermiculite Coated Ceramic Cloth: High-Performance Protection in Extreme Heat Environments

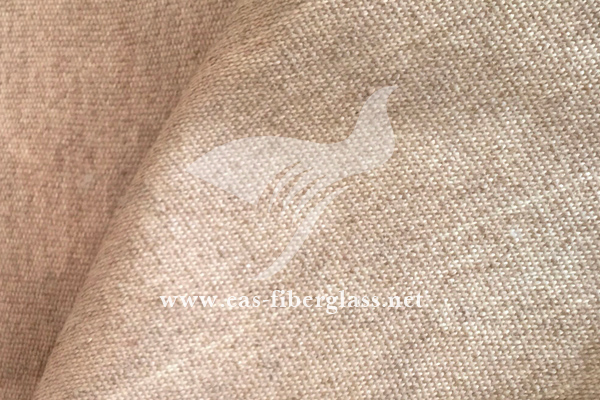

Vermiculite-coated ceramic cloth is a high-performance thermal insulation material engineered for extreme temperature applications. It is manufactured by coating high-quality stainless steel (S.S.) wire-reinforced ceramic fiber fabric with a uniform layer of vermiculite dispersion. This combination enhances the fabric's resistance to high heat and mechanical wear, making it highly suitable for harsh industrial environments.
The integration of vermiculite into ceramic cloth significantly boosts its ability to withstand intense temperatures and direct flame. This coating not only reinforces the structural integrity of the ceramic fabric but also extends its service life under prolonged thermal exposure. With a continuous operating temperature resistance of up to 1200°C, vermiculite-coated ceramic fabric is ideal for applications involving molten metal splash, open flames, or heavy-duty welding.
Exceptional Heat Resistance: Withstands continuous exposure to temperatures up to 1200°C, making it ideal for severe thermal environments.
Non-Toxic & Low Smoke Emission: Safe to use in enclosed or sensitive environments, with minimal smoke generation during exposure to flames.
High Mechanical Strength: Reinforced with stainless steel wire, the fabric offers superior tensile strength and tear resistance.
Enhanced Stability: Excellent weave setting reduces fraying, while the vermiculite layer minimizes fiber irritation, making it easier to handle.
Due to its superior fire and heat protection, vermiculite-coated ceramic cloth is widely used across various industries, including:
Welding Blankets: Acts as a protective barrier during welding operations to shield personnel and nearby equipment from sparks, slag, and molten metal.
Molten Metal Protection: Ideal for use around furnaces or in foundries where exposure to molten iron or aluminum is frequent.
Refractory Insulation: Serves as a durable insulating layer in high-temperature industrial furnaces and kilns.
High-Performance Heat Protection Fabric with Stainless Steel Reinforcement
Vermiculite-coated ceramic cloth is a premium-grade thermal insulation material made from stainless steel wire-reinforced ceramic fiber fabric. The surface is treated with a vermiculite dispersion, enhancing its performance in extreme heat conditions. This coating improves the fabric’s fire resistance, mechanical durability, and lifespan under high-temperature exposure.
| Feature | Benefit |
| Temperature Resistance up to 1200°C | Reliable performance under extreme fire and heat exposure |
| Stainless Steel Wire Reinforcement | Increased tensile strength and dimensional stability |
| Vermiculite Coating | Enhances durability, heat shielding, and surface stability |
| Low Smoke & Non-Toxic | Safe for enclosed environments; low emissions during high heat |
| Low Fiber Irritation | Safer and more comfortable handling for workers |
| Excellent Weave Setting | Easy fabrication with minimized fraying and shrinkage |
Welding Blankets & Curtains
Shield personnel and equipment from sparks, molten splatter, and slag.
Molten Metal Protection
Effective in foundries and casting facilities for iron, aluminum, and other molten materials.
Refractory Insulation Liners
Used in furnaces, kilns, incinerators, and other high-temperature chambers.
Thermal Shields for Heavy Equipment
Protects components from direct radiant heat and flame.
| Parameter | Value |
| Base Material | Ceramic Fiber Fabric |
| Reinforcement | Stainless Steel Wire |
| Coating | Vermiculite Dispersion |
| Maximum Service Temperature | Up to 1200°C (2192°F) |
| Thickness (Standard) | 1.5 mm – 3.0 mm (customizable) |
| Weight | 800 – 1200 g/m² |
| Color | Golden Brown (Typical) |
| Width | Up to 1 meter (custom sizes available) |
Standard roll length: 30 meters
Custom lengths, widths, and die-cut shapes available upon request
Delivered in moisture-proof and abrasion-resistant packaging
✅ Superior protection in extreme environments
✅ Trusted in metallurgy, shipbuilding, power plants, and foundries
✅ Customization available for OEM and B2B supply chains
Vermiculite-coated ceramic cloth is a versatile and robust material designed for demanding thermal applications. Its combination of high heat resistance, mechanical strength, and worker-safe properties makes it a reliable choice for industries requiring dependable fire and heat shielding. Whether used as a welding blanket or in refractory lining, this advanced fabric ensures protection and longevity in even the harshest environments.
