Jun 17, 2024

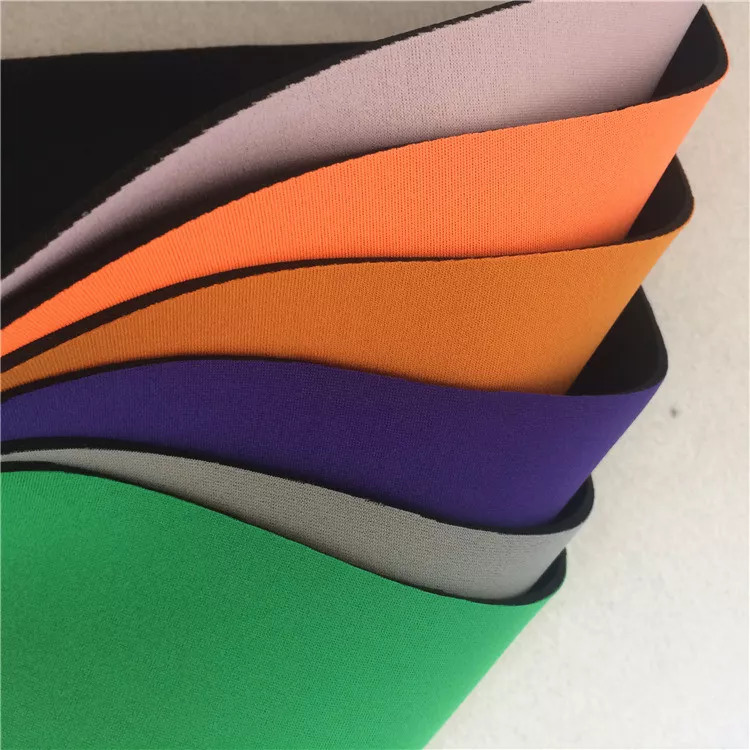

What is Neoprene Coated Polyester Fabric?




Neoprene Coated Polyester Fabric is a high-performance material that combines the strength and durability of polyester with the versatile properties of Chloroprene Rubber (Neoprene). This combination results in a fabric that offers superior oil and chemical resistance, excellent heat resistance, and outstanding fireproof properties, making it suitable for a wide range of industrial and commercial applications.

Key Properties and Advantages:

1. Oil and Chemical Resistance:

  • Neoprene coating provides excellent resistance to oils, chemicals, and solvents, making this fabric ideal for environments where such exposures are common.

2. Heat and Fire Resistance:

  • The fabric can withstand continuous temperatures ranging from -35°C to 95°C and point temperatures up to 105°C, ensuring durability and safety in high-temperature applications.
  • It also has excellent fireproof properties, enhancing safety in fire-prone environments.

3. Mechanical Strength:

  • The fabric exhibits high warp and weft breaking strength, ensuring it can withstand significant tensile forces.
  • Warp Breaking Strength: 90 - 2000 daN/5cm
  • Weft Breaking Strength: 80 - 1400 daN/5cm
  • Warp and Weft Elongation at Break: 10% - 20%

4. Versatility:

  • Due to its robust properties, Neoprene Coated Polyester Fabric is widely used in the manufacture of inflatable structures, straps, tarps, tires, ropes, sun protection gear, and thermal insulation combinations.

Specifications:

General Properties:

  • Weight per sqm: From 450 g/m²
  • Thickness: Customizable upon request
  • Peeling Strength: Customizable upon request

Temperature Range:

  • Continuous Temperature: -35°C to 95°C
  • Point Temperature: -35°C to 105°C

Fabric Details by Denier and Thread Count:

Polyester Fabric/Denier Threads/Inch
500*500D 9*9
500*500D 18*12
500*500D 18*21
500*500D 28*28
840*840D 9*9
840*840D 18*18
1000*1000D 9*9
1000*1000D 18*12
1000*1000D 18*18
1000*1000D 20*20
1000*1000D 23*23
1000*1000D 30*30
1500*1500D 33*33


Applications:

1. Inflatable Structures:

  • Used in the manufacturing of inflatable tents, boats, and other structures requiring flexibility and durability.

2. Straps and Harnesses:

  • Ideal for creating strong, durable straps used in various industries, including logistics and safety equipment.

3. Tarps and Covers:

  • Provides excellent protection against harsh environmental conditions, making it suitable for heavy-duty tarps and covers.

4. Tires and Ropes:

  • Enhances the strength and longevity of industrial tires and ropes.

5. Sun Protection and Thermal Insulation:

By leveraging the superior properties of Neoprene Coated Polyester Fabric, industries can benefit from a material that offers exceptional resistance to environmental factors, durability, and versatility, making it an ideal choice for a wide range of demanding applications.
