Fiberglass Sleeve

Products Mode:
Working temperature: 260℃
Melt temperature: 850℃
Flame retarded: DIN5510 1
Application: Cable; Hose; Automotive

Inquiry Now
Prev Next
Description

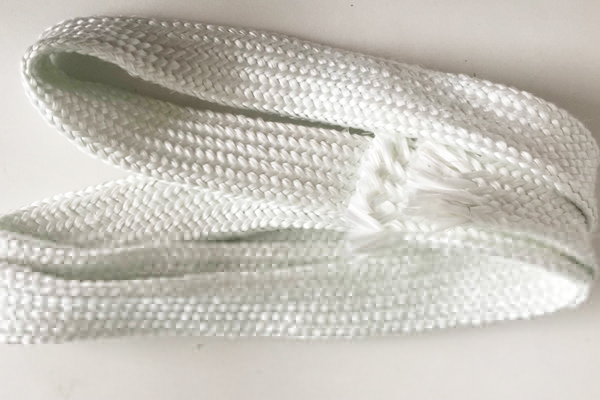

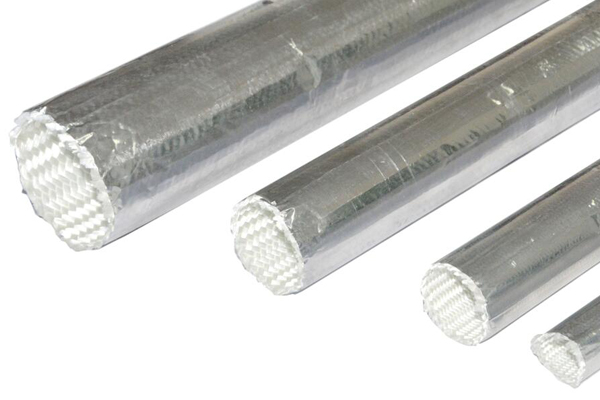

Fiberglass sleeve is braided high quality E glass fiber yarn, a flat and low fuzz fire sleeve. It is light duty insulation protection sleeve and can be further processed with acrylic, silicone rubber and aluminum foil.

Features
100% E glass fiber, imcombustible
High strength and durability
Smooth and low fuzz
High temperature resistance rating up to 550℃
Compatible with eopxy

Application
Cable; Hose; Resin reinforcement;

Further process to:



Products Description:
Item Inner   diameter, mm Wall   thickness, mm Yield   per kg, m
AS-6 6.0 1.5 20
AS-8 8.0 1.6 12.5
AS-10 10.5 1.8 9.5
AS-12 13.5 1.9 6.7
AS-15 15.5 2.1 5.7
AS-20 20 2.4 3.8
AS-22 22 2.5 3.3
AS-25 25 2.6 2.9
AS-28 28 2.7 2.6
AS-30 30 2.9 2.3
AS-35 35 3.1 1.9
AS-38 38 3.2 1.8
AS-40 40 3.4 1.7
AS-45 45 3.4 1.4
AS-50 51 3.6 1.2
AS-55 56 3.7 1.1
AS-60 61 3.8 0.96
AS-65 66 3.8 0.90
AS-70 71 4.0 0.80
AS-75 76 4.1 0.73
AS-80 81 4.3 0.66
AS-85 86 4.3 0.60
AS-90 91 4.5 0.54
AS-100 101 4.6 0.50
AS-110 111 4.7 0.44
AS-150 151 5.2 0.38

Approx 20meters or 10meters per roll



Packing:
One roll per carton


Equipment:


Fiber forming

Textile woven, knitting, braiding

Fabric coating


Why cloose us:

  • Top priority:
    Complete and matured quality control and assurance experience. ISO9001-2008 certification. Our Promise:
    NEVER REDUCE QUALTY FOR PROFIT
    NEVER REDUCE QUALTY FOR HIGHER COST
    100% RESPONSIBLE FOR OUR QUALITY

  • Price and term:
    Low price level for products range raw yarn to finished products.

  • Feedback:
    Shortest time reaction to inquiry, production state, delivery state, custom clearance supports and complaints.

  • Support:
    Project involved, new products development and investment.



FAQ:

  •   What is products of EAS?
    EAS produces single fiberglass yarn, high temperature sewing threads, fiberglass woven fabrics, coating fabrics and fabrics finish. If necessary, EAS will buy other yarns for specific textiles request.
  •   EAS provide all the products in the website?
    This website is one of EAS’s promotional channels. For special textiles or short production capacity, EAS will provide raw materials (Like fiberglass yarns and fabrics) and look for reliable OEM service in the condition of quality assurance.
Related Products

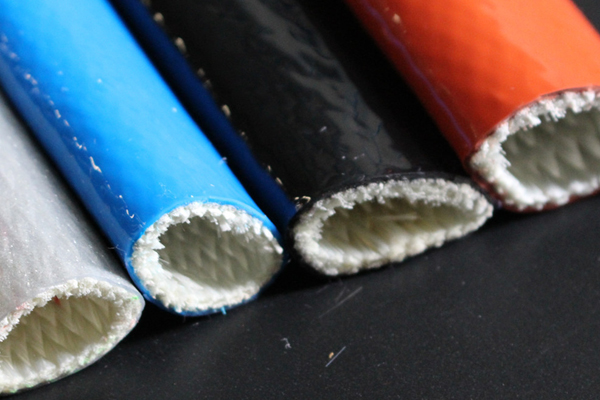

Silicone Coated Fiberglass Sleeve
