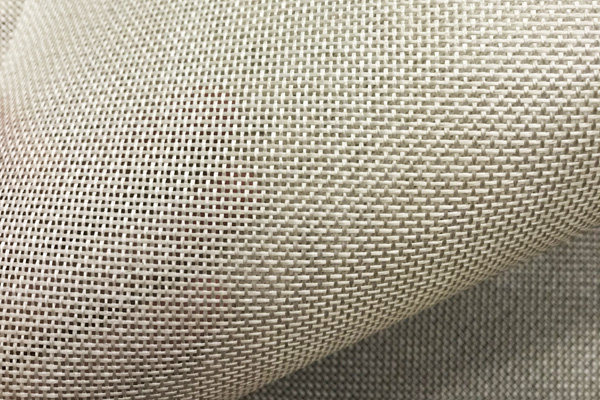

Peel Ply Porous PTFE Coated Fiberglass Cloth
Porous PTFE Coated Fiberglass Fabric is a light weight PTFE coating with E glass fabric. The light weight coating makes the PTFE coated fiberglass fabric porous and coarse surface. The porous fabric is an ideal peel ply material for resin cure and release, heat air drying. Premium PTFE coated fiberglass fabric are also option for specifc application
Features
High temperature resistance up to 260℃
Porours coating, permeable
Non-stick surface
Good tensile strength
Outstanding resistance to most chemicals
PFOA free certification
Application

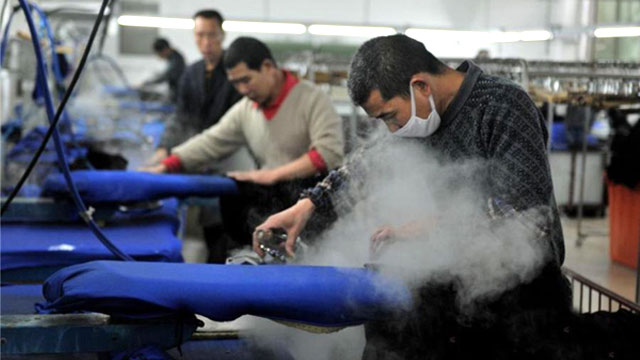

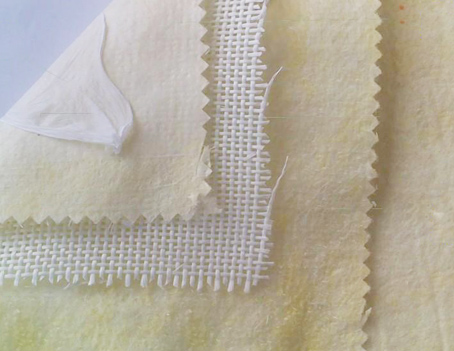

Peel ply; Textile iron; Filtration
| Item | Thickness, mm | Area weight, g/m2 | Tensile strength, N/50mm | PTFE content,% |
| FC50P | 0.08 | 70 | 800 | 20 |
| FC100P | 0.13 | 120 | 1200 | 20 |
| FC160P | 0.16 | 200 | 1600 | 20 |
| FC200P | 0.20 | 250 | 2000 | 20 |
More specification can be made as request
Specification
Weight: 580g/m2±10%.
Base Fabric and Weave: Fiberglass/satin weave.
Thickness: 0.4mm.
Coating: ptfe coated on single side
Temperature resistance: 260℃
Roll width: 1500mm (1524mm, 1550mm)
Packing:
Width:1000mm, 1270mm, 1500mm
Length: 50m, 100m
Carton & pallet
 |
 |
 |
|
Fiber forming |
Textile woven, knitting, braiding |
Fabric coating |
Why cloose us:
-
Top priority:
Complete and matured quality control and assurance experience. ISO9001-2008 certification. Our Promise:
NEVER REDUCE QUALTY FOR PROFIT
NEVER REDUCE QUALTY FOR HIGHER COST
100% RESPONSIBLE FOR OUR QUALITY -
Price and term:
Low price level for products range raw yarn to finished products. -
Feedback:
Shortest time reaction to inquiry, production state, delivery state, custom clearance supports and complaints. -
Support:
Project involved, new products development and investment.
FAQ:
-
What is products of EAS?EAS produces single fiberglass yarn, high temperature sewing threads, fiberglass woven fabrics, coating fabrics and fabrics finish. If necessary, EAS will buy other yarns for specific textiles request.
-
EAS provide all the products in the website?This website is one of EAS’s promotional channels. For special textiles or short production capacity, EAS will provide raw materials (Like fiberglass yarns and fabrics) and look for reliable OEM service in the condition of quality assurance.
